Mitsubishi Electric CITY MULTI YKE-Series
Mitsubishi Electric CITY MULTI YKE-Series is a cooling-only VRF outdoor-unit range for larger commercial ACMV projects, with high-efficiency inverter scroll compressors, R410A refrigerant, and wide system combinations from 8 HP to 60 HP.
Key Features
Wide system range
The YKE-Series catalogue covers models from 8 HP to 60 HP, including single outdoor modules and combined YSKE systems.
Improved rated efficiency
Mitsubishi Electric states that all YKE models from 8 HP to 60 HP have improved rated EER compared with the conventional YKD series.

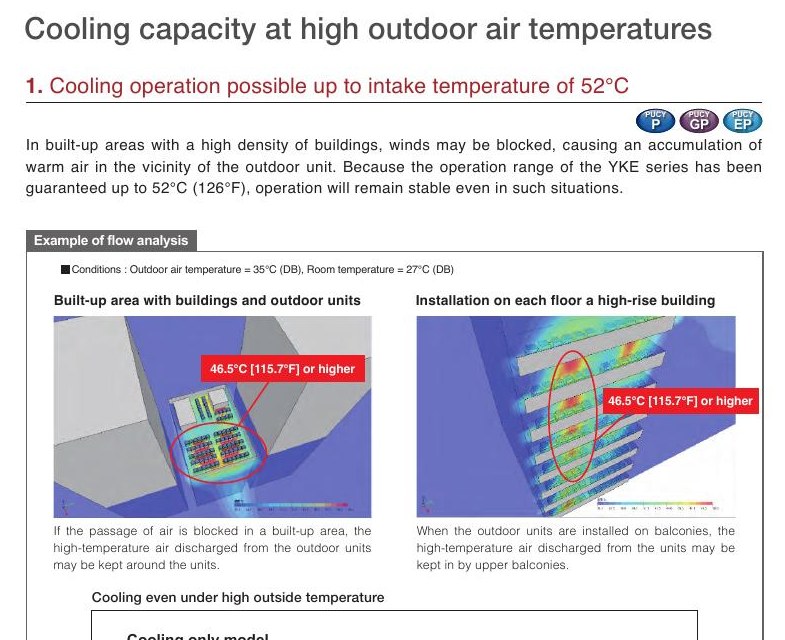

High outdoor-temperature cooling operation
The specification tables list a cooling outdoor operating range from 10.0 to 52.0 deg C dry bulb, supporting commercial cooling operation in hot conditions.

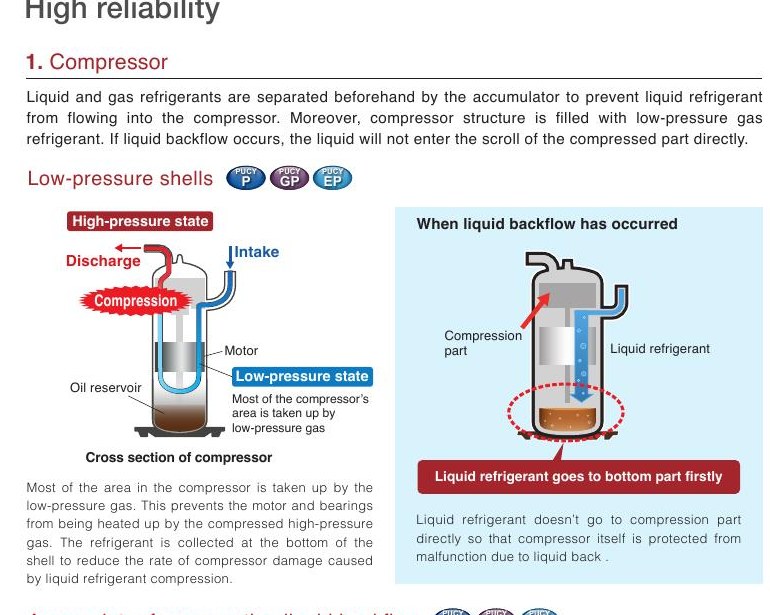

Inverter scroll compressor
The YKE-Series outdoor units use inverter scroll hermetic compressors with inverter starting, supporting variable-capacity commercial VRF operation.

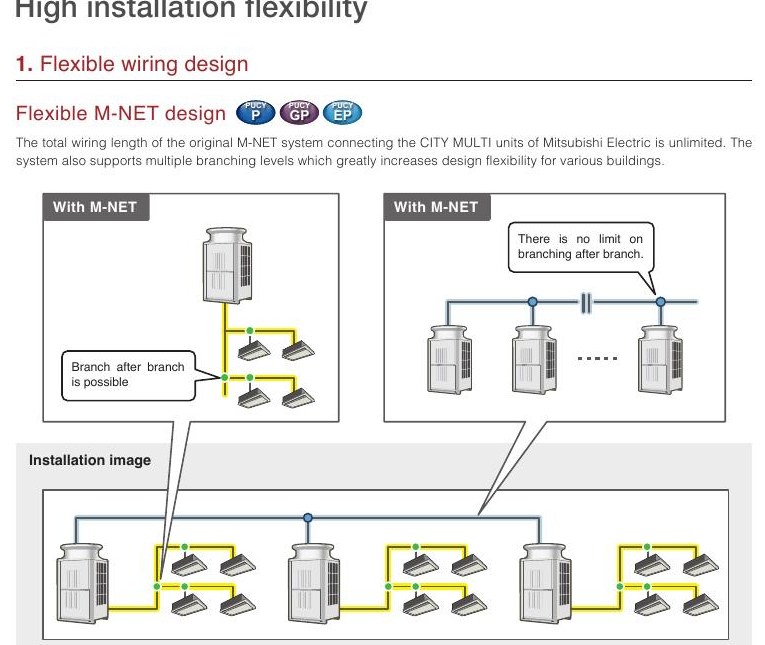

M-NET system communication
The catalogue references M-NET indoor and outdoor unit communication for CITY MULTI systems, supporting centralized commercial control and integration options.
Project Archives with CITY MULTI YKE-Series
No published project references are linked to this product yet.
Specification Tables
Single Outdoor Module Snapshot
Swipe sideways to view the full table.
| Model | Nominal cooling | BTU/h | Power input | EER | Indoor units | Sound pressure |
|---|---|---|---|---|---|---|
| PUCY-P200YKE (-BS) | 22.4 kW | 76,400 | 4.48 kW | 5.00 | 1-17 | 57.0 dB(A) |
| PUCY-P250YKE (-BS) | 28.5 kW | 97,200 | 6.04 kW | 4.71 | 1-21 | 58.0 dB(A) |
| PUCY-P300YKE (-BS) | 33.5 kW | 114,300 | 7.78 kW | 4.30 | 1-26 | 61.0 dB(A) |
| PUCY-P350YKE (-BS) | 40.0 kW | 136,500 | 9.45 kW | 4.23 | 1-30 | 61.0 dB(A) |
| PUCY-P400YKE (-BS) | 44.0 kW | 150,100 | 11.12 kW | 3.95 | 1-34 | 63.5 dB(A) |
| PUCY-P450YKE (-BS) | 48.0 kW | 163,800 | 12.67 kW | 3.78 | 1-39 | 64.0 dB(A) |
| PUCY-P500YKE (-BS) | 56.0 kW | 191,100 | 14.73 kW | 3.80 | 1-43 | 65.0 dB(A) |
Combined YSKE System Snapshot
Swipe sideways to view the full table.
| Model | Nominal cooling | BTU/h | Power input | EER | Indoor units | Sound pressure |
|---|---|---|---|---|---|---|
| PUCY-P550YSKE (-BS) | 62.0 kW | 211,500 | 14.09 kW | 4.40 | 1-47 | 63.0 dB(A) |
| PUCY-P600YSKE (-BS) | 68.5 kW | 233,700 | 15.39 kW | 4.45 | 1-50 | 63.0 dB(A) |
| PUCY-P650YSKE (-BS) | 72.5 kW | 247,400 | 17.63 kW | 4.11 | 1-50 | 65.0 dB(A) |
| PUCY-P700YSKE (-BS) | 76.5 kW | 261,000 | 18.98 kW | 4.03 | 1-50 | 65.0 dB(A) |
| PUCY-P750YSKE (-BS) | 81.5 kW | 278,100 | 21.27 kW | 3.83 | 1-50 | 66.0 dB(A) |
| PUCY-P800YSKE (-BS) | 88.0 kW | 300,300 | 23.46 kW | 3.75 | 1-50 | 66.5 dB(A) |
| PUCY-P850YSKE (-BS) | 92.0 kW | 313,900 | 25.06 kW | 3.67 | 1-50 | 67.0 dB(A) |
| PUCY-P900YSKE (-BS) | 96.0 kW | 327,600 | 26.74 kW | 3.59 | 1-50 | 67.0 dB(A) |
| PUCY-P950YSKE (-BS) | 104.0 kW | 354,800 | 28.88 kW | 3.60 | 1-50 | 67.5 dB(A) |
| PUCY-P1000YSKE (-BS) | 112.0 kW | 382,100 | 31.02 kW | 3.61 | 1-50 | 68.0 dB(A) |
| PUCY-P1050YSKE (-BS) | 115.0 kW | 392,400 | 29.33 kW | 3.92 | 1-50 | 67.0 dB(A) |
| PUCY-P1100YSKE (-BS) | 121.5 kW | 414,600 | 30.91 kW | 3.93 | 1-50 | 67.0 dB(A) |
| PUCY-P1150YSKE (-BS) | 128.0 kW | 436,700 | 33.33 kW | 3.84 | 1-50 | 68.0 dB(A) |
| PUCY-P1200YSKE (-BS) | 132.0 kW | 450,400 | 35.20 kW | 3.75 | 1-50 | 68.5 dB(A) |
| PUCY-P1250YSKE (-BS) | 136.0 kW | 464,000 | 36.85 kW | 3.69 | 2-50 | 68.5 dB(A) |
| PUCY-P1300YSKE (-BS) | 140.0 kW | 477,700 | 38.46 kW | 3.64 | 2-50 | 69.0 dB(A) |
| PUCY-P1350YSKE (-BS) | 144.0 kW | 491,300 | 40.11 kW | 3.59 | 2-50 | 69.0 dB(A) |
| PUCY-P1400YSKE (-BS) | 152.0 kW | 518,600 | 42.33 kW | 3.59 | 2-50 | 69.5 dB(A) |
| PUCY-P1450YSKE (-BS) | 160.0 kW | 545,900 | 44.44 kW | 3.60 | 2-50 | 69.5 dB(A) |
| PUCY-P1500YSKE (-BS) | 168.0 kW | 573,200 | 46.53 kW | 3.61 | 2-50 | 70.0 dB(A) |
Typical Applications
- Retail, office, F&B, education, and commercial premises requiring larger VRF system capacity
- Cooling-only replacement or fit-out projects where multiple CITY MULTI indoor units are connected to one outdoor system

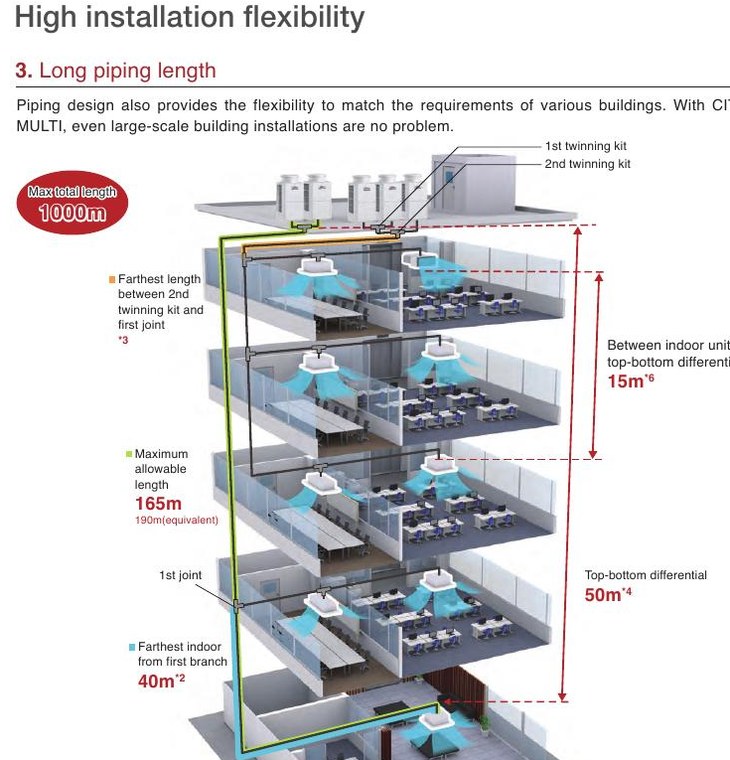

- Projects that need 3-phase commercial power, long refrigerant piping capability, and M-NET system control
