4 to 6 HP VRV S lineup
The Singapore brochure covers RXMQ4AAVEG, RXMQ5AAVEG, and RXMQ6AAVEG outdoor units for 4 HP, 5 HP, and 6 HP cooling-only applications.
Product Library
Daikin VRV S Series
Daikin VRV S Series is a compact cooling-only VRV system for smaller commercial projects that need zoning flexibility, up to 9 connectable indoor units, and longer piping runs from a single outdoor unit.
Key Features
Higher energy efficiency versus VRV IV S
Daikin states that VRV S 4-6 HP offers better energy efficiency compared with the earlier VRV IV S series, with the strongest gain highlighted on the 6 HP model.
Up to 9 indoor units on one outdoor unit
The product page states that up to 9 indoor units can connect to a single outdoor unit, making the VRV S series practical for smaller multi-room commercial layouts.
Long piping design
Daikin publishes a maximum actual piping length of 120 m and total piping length of 300 m for the 4-6 HP range, supporting flexible routing in commercial renovation and fit-out works.
Mixed indoor-unit lineup
The brochure lists standard slim duct, compact slim duct, middle static duct, ceiling cassette, wall-mounted, and outdoor-air processing indoor-unit options for the VRV S range.
Project Archives with Daikin VRV S

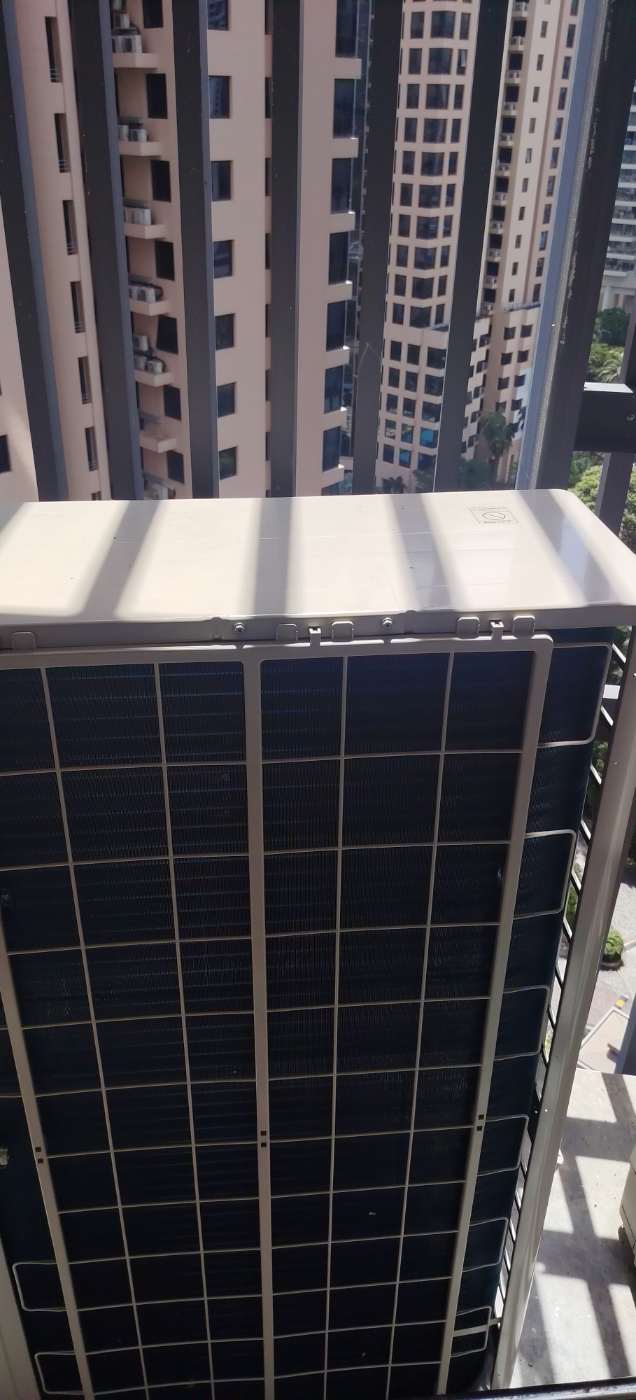

Commercial 11 Cuscaden Walk, #12-01, Singapore 249697
Commissioned 1x Daikin RXMUQ6AVEG 14.0 kW condensing unit with pressure/vacuum tests, electrical checks, and start-up readings recorded.
View project details
Office Metal Master Office
View project detailsSpecification Tables
Outdoor Unit Cooling Capacity
Swipe sideways to view the full table.
| Model | Nominal cooling capacity (kW) | Nominal cooling capacity (Btu/h) | Outdoor-unit power consumption (kW) |
|---|---|---|---|
| RXMQ4AAVEG | 11.2 | 38,200 | 2.69 |
| RXMQ5AAVEG | 14.0 | 47,800 | 3.44 |
| RXMQ6AAVEG | 16.0 | 54,600 | 3.59 |
Wall-Mounted Indoor Unit Specifications
Swipe sideways to view the full table.
| Model | Cooling capacity (kW) | Power consumption (kW) | Airflow rate high/low (m3/min) | Sound level high/low dB(A) |
|---|---|---|---|---|
| FXAQ20ARVEG | 2.2 | 0.042 | 7.5 / 4.5 | 35 / 31 |
| FXAQ25ARVEG | 2.8 | 0.046 | 9 / 5 | 36 / 31 |
| FXAQ32ARVEG | 3.6 | 0.047 | 11 / 5.5 | 38 / 31 |
| FXAQ40ARVEG | 4.5 | 0.048 | 13 / 9 | 39 / 34 |
| FXAQ50ARVEG | 5.6 | 0.051 | 15 / 12 | 42 / 37 |
| FXAQ63ARVEG | 7.1 | 0.056 | 19 / 14 | 47 / 41 |
Fan Coil Types Available

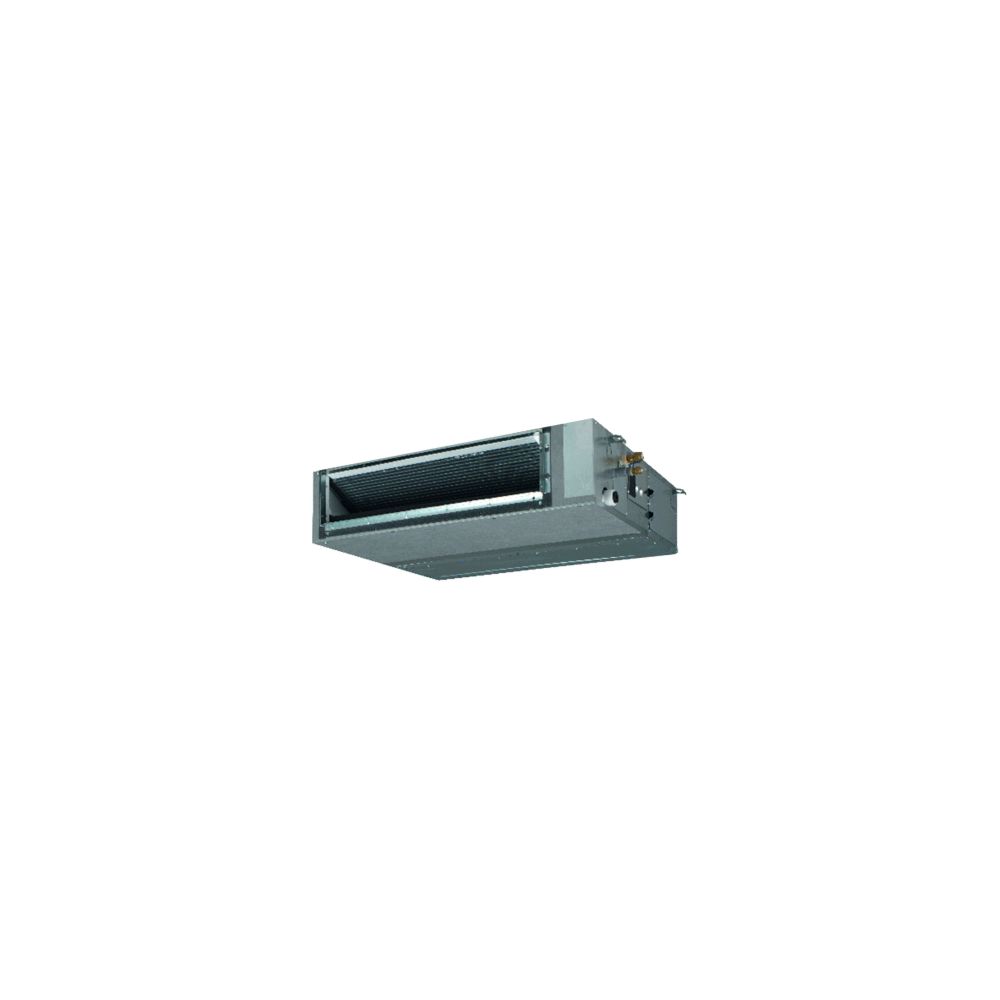

Ducted Slim Ceiling Mounted Duct (Standard Series)
FXDQ-PDVE / FXDQ-PDVET / FXDQ-NDVE / FXDQ-NDVET

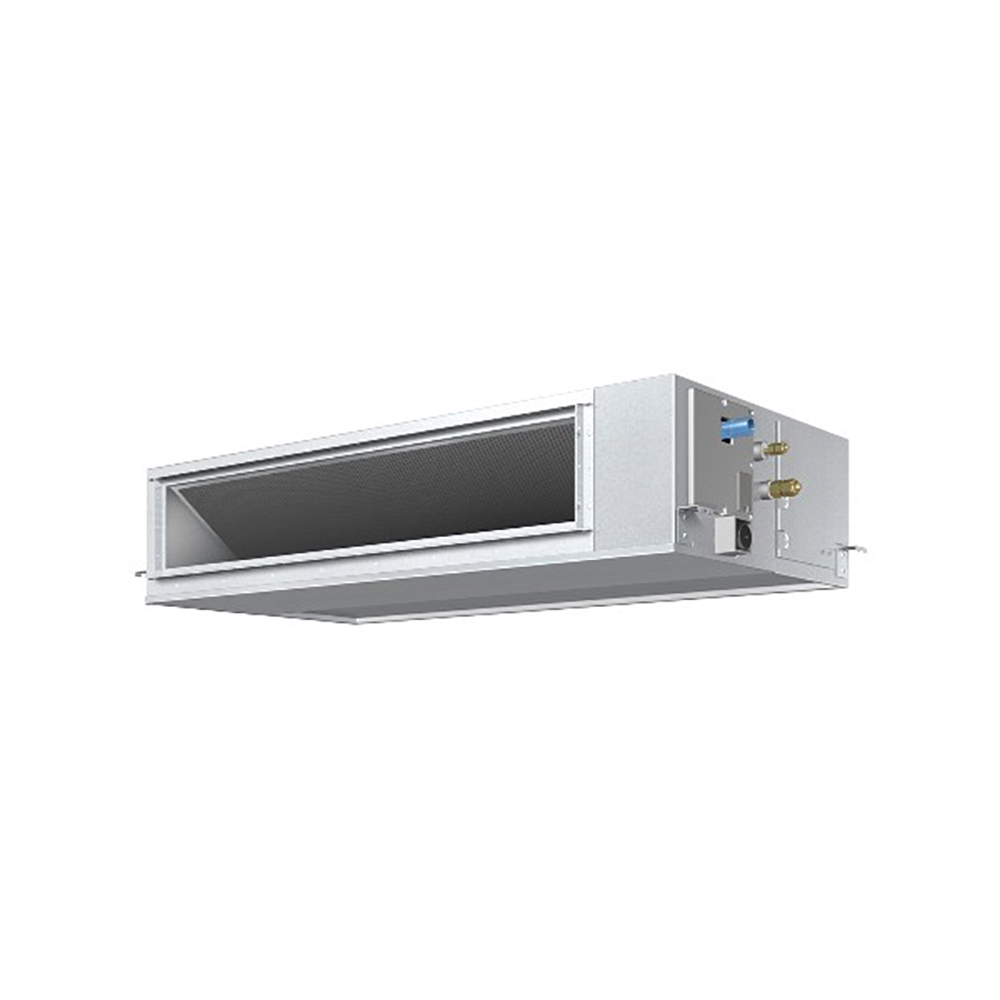

Ducted Middle Static Pressure Ceiling Mounted Duct
FXSQ-PAVE
Ducted Ceiling Mounted Duct
FXMQ-PAVE
Wall Mounted Wall Mounted
FXAQ-ARVEG
Cassette Ceiling Mounted Cassette (Round Flow with Sensing)
FXFSQ-AVM

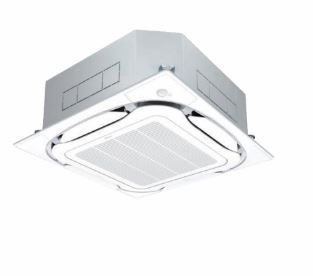

Cassette Ceiling Mounted Cassette (Round Flow)
FXFQ-AVM
Ducted Slim Ceiling Mounted Duct (Compact Series)
FXDQ-SPV1
Outdoor Air Outdoor-Air Processing Unit
FXMQ-MFV1
Typical Applications
- Small commercial offices, retail units, cafes, clinics, and fit-out projects that need compact VRV zoning
- Projects where one outdoor unit needs to support multiple indoor zones without moving to a larger VRV platform
- Sites that benefit from longer piping runs and mixed indoor-unit formats such as wall-mounted, cassette, and ducted units
